Rugged, functional and very easy to use, these displays provide all the information you need while out on the water.

INTUITIVE AND UNCLUTTERED DESIGN

On the ICON TOUCH screens, the engine and boat systems information is categorized in the following sections.




1. HOMEPAGE

General cruising and performance information including RPM, trim level, engine water temperature, fuel economy MPG, fuel consumption GPH and boat speed.


2. FUEL / FLUIDS PAGE

Precise readouts of fuel levels up to 4 tanks, engine oil levels and water tanks.


3. ENGINE PAGE

In-depth monitoring of one or up to 4 EvinrudeĀ® E-TECĀ® G2 outboards.


4. VESSEL PAGE

Accurate readouts of battery voltage, boat speed, and fuel economy.


5. TRIP LOGS

Offers detailed information regarding trip distance, fuel economy, average speed and more.


6. ECOVIEW PAGE

Fuel management information allows the user to optimize engine throttle and trim adjustment for instant changes and the most efficient operation.


THREE DIFFERENT TYPES OF ICON TOUCH

ICON 3.5 CS COLOR SCREEN

  • Color Screen - Easy to access information.
  • Touch buttons for navigation
  • 1 engine support.
  • Fuel tank levels up to 2 tanks.
  • Engine oil level and accessory oil tank levels.

ICON TOUCH 4.3 CTS

  • Medium format, full-color 4.3 inch touch screen.
  • 1 or 2 engine support
  • Fuel tank levels up to 4 tanks
  • Water tank levels up to 1 tanks/1 water type

ICON TOUCH 7.0 CTS

  • Large format, full-color 7.0 inch touch screen.
  • 1, 2, 3 or 4 engine support.
  • Fuel tank levels up to 4 tanks
  • Water tank levels up to 3 tanks/3 water types

THREE DIFFERENT TYPES OF ICON

ICON PRO SERIES

  • Specialized functions including GPS speed, fuel management, fuel economy, trip logs and many more.
  • Connects directly into the existing Evinrude NMEA 2000 network.
  • Works on Evinrude E-TEC 40-hp through 300-hp
  • Supports up to 5 engines and up to 4 fuel tanks
  • Features anti-fog lens
  • Includes engine fault display

*Does not support Evinrude E-TEC G2 foot throttle transfer

ICON BASIC SERIES (3.5 and 3)

  • Traditional analog dial look
  • Data sent via the NMEA 2000 Communications Standard
  • Packaged in high value, lower cost gauge
  • No buttons to push, no setup required
  • Supports up to 2 engines and up to 2 fuel tanks
  • Features anti-fog lens
  • Includes engine fault warning lights
  • Daisy chain connections between the tachometer and accessory gauges simplify wiring

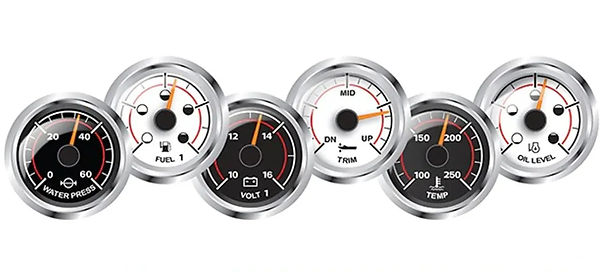

ICON ACCESSORIES

  • Fuel
  • Volt
  • Water Pressure
  • Oil Level
  • Trim
  • Engine Temperature

SYSTEMCHECK

SystemCheck gauges deliver basic engine information with simplicity and accuracy by engineering and designs that have stood through the test of time.


MAJOR FUNCTIONS

  • Analog functionality
  • Solid state electronics
  • Temperature resistant plastics and scratch resistant glass lenses
  • Perimeter lighting for nighttime reading
  • Tachometers and speedometers fit standard 33/8" holes
  • Smaller gauges for  engine trim level, engine water pressure, fuel level, and battery volts all fit a standard 21/8" hole.
